Parameter	Specification

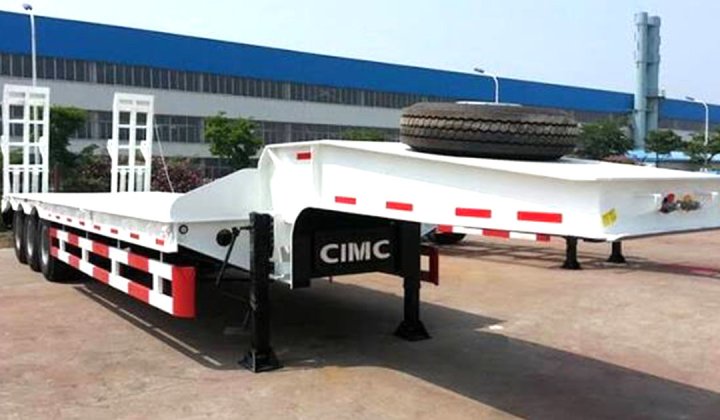

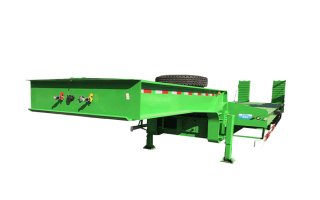

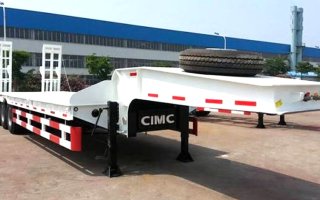

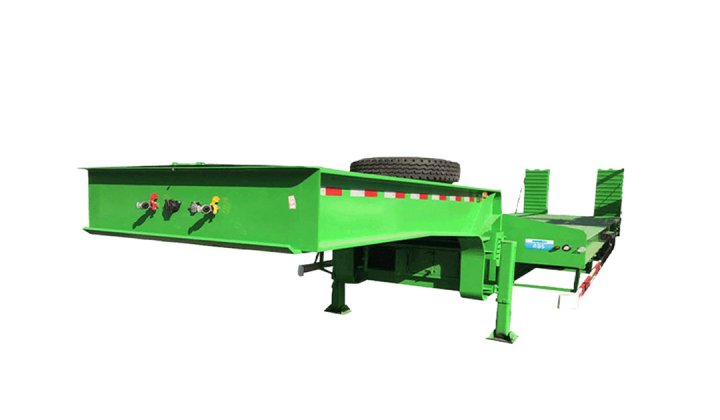

Type	Tri-Axle Lowbed Semi Trailer
Model	CIMC9853TDA
Overall Dimensions (L × W × H)	17,260 × 3,200 × H mm
Overall Height	Adjusted according to tractor configuration
Cargo Platform Size (L × W)	12,030 × 3,200 mm
Tare Weight	Approx. 18,000 kg
Max. Payload	70,000 kg
Platform Floor Thickness	6 mm
Ramp	Spring-assisted ramp
Ramp Surface	4.5 mm checker plate
Ramp Width	800 mm
Structural Style	Flatbed platform with non-exposed tires
Tire	315/80R22.5-18PR
Tire Brand	Linglong
Tire Quantity	13 pcs per trailer, including 1 spare tire
Rim Size	22.5 × 9.00
Rim Quantity	13 pcs per trailer, including 1 spare rim
Axles	3 × BPW 14-ton axles
King Pin	JOST 90#, bolt-on type
Suspension	Mechanical suspension, 10-leaf spring, 90 × 16 mm
Landing Gear	JOST A400 + D10000A
Brake System	Dual air brake system, 30/30 brake chambers
Brake Valve	WABCO
ABS	WABCO 4S/2M ABS
Air Brake Pipe Connector	Red and yellow gladhand connectors
Electrical System	24V
Lighting System	LED lights
Tool Box	1 set
Side Guardrails	Equipped on both left and right sides
Mudguards	Steel
Spare Tire Carrier	2 sets per trailer
Rope Hooks & Tighteners	Standard equipment
Painting	Primer + topcoat
Color	Green, RAL 601

Key features (official)

- 70-Ton Capacity

Designed to carry extremely heavy loads, perfect for large-scale industrial transport.

- Three-Axle Support

Ensures balanced weight distribution and stable transport over long distances.

- Reinforced Structure

Built with high-strength materials to withstand the demands of heavy-duty hauling.

- Enhanced Safety Features

Equipped with advanced braking systems and strong lashing points for secure transport.

- 1. What is the loading capacity of this low bed trailer?

This CIMC low bed trailer has a 50-ton payload capacity and a 60-ton GVWR , making it suitable for transporting heavy machinery, excavators, bulldozers, loaders, and other oversized equipment.

- 2. What are the dimensions of the trailer?

The standard dimensions are 13000mm × 3000mm × 3180mm (L×W×H) . Customized dimensions are available according to different transportation requirements.

- 3. How many axles does this trailer have?

This low bed trailer is equipped with 3 axles , providing excellent stability and balanced load distribution for heavy-duty transportation.

- 4. What brand of axles are used on this trailer?

The trailer is equipped with FUWA 13-ton axles (3 pcs) , offering strong load capacity, durability, and reliable performance.
