Operating Weight

23,400

kg

CSV

Blade Type / Capacity

Straight, 5.5

m³

CSV; U-blade / Semi-U blade optional

Overall Dimension (L × W × H)

~6,800 × 3,725 × 3,400

mm

Reference value

Track Contact Length / Gauge

~2,850 / 2,000

mm

Reference value

Standard Track Shoe Width

560

mm

Reference value

Ground Pressure

~0.078

MPa

Reference value

Minimum Ground Clearance

~405

mm

Reference value

Model

Weichai WD12G240E241 (Weichai Power)

CSV

Type

Inline 6-cylinder, 4-stroke, water-cooled, turbocharged diesel engine

—

Rated Power

162 kW @ 2,000 rpm

CSV

Displacement

~11.6 L

Reference value

Max Torque

~1,050 N·m @ 1,300–1,400 rpm

Reference value

Emission Standard

Depends on destination region (Tier 3 / China National Stage III)

Reference value

Fuel Tank Capacity

~530 L

Reference value

Blade Width × Height

~3,725 × 1,315

mm

Reference value

Max Cutting Depth

~540

mm

Reference value

Max Lift Height (Blade Bottom)

~1,140

mm

Reference value

Blade Adjustment

Hydraulic Tilt

—

Reference value

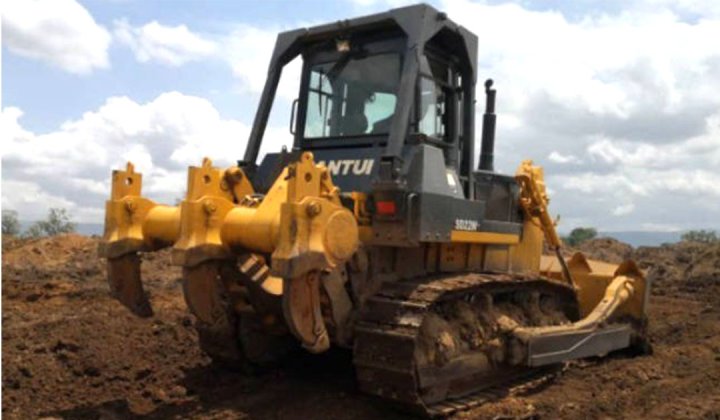

Ripper (Optional)

Single-shank / Multi-shank (3-shank) ripper

—

Reference value

Winch (Optional)

Rear hydraulic winch, single line pull ~250 kN

—

Reference value

Working Pump

Gear pump (for blade + steering)

Reference value

Working Pressure

~17.5 MPa

Reference value

Hydraulic Tank

~120 L

Reference value
